Extensor Wi-Fi Mini

The new Wi-Fi Extender Mini is a powerful 802.11 ax Wireless Tri Band Extender that supports the latest Wi-Fi technology. Ofrece roaming continuo, manejo de banda y tecnología de redes autoorganizadas (SON). Wi-Fi Extender Mini is one of the first mini extenders in the market that supports 2.4GHz, 5GHz and 6GHz (Wi-Fi 6E). The compact wall plug-in design enables you to have an easy plug and connect experience to extend the seamless connectivity in your home.

Wi-Fi 6E provides a new band of Wi-Fi spectrum operating on the 6 GHz frequency that leverages the advanced speeds available with Wi-Fi 6 (which brought 802.11ax support). La banda de 6 GHz ofrece hasta siete canales anchos de 160 MHz diferentes para usar mientras que la banda de 5 GHz solo tiene dos.

Sí, para disfrutar de un rendimiento Wi-Fi óptimo, los controladores Wi-Fi siempre deberían estar actualizados. En varios casos, pero no en todos, los controladores Wi-Fi se actualizan automáticamente mediante la activación de actualizaciones automáticas.

Nota: Los adaptadores Intel Wireless compatibles con 802.11ac con controladores más antiguos podrían no mostrar las redes Wi-Fi 6 (802.11ax). Verifica/actualízate a los últimos controladores Wi-Fi.

Step by step instructions are listed below, at setup.verizon.com/wifiextendermini or by scanning the QR code below.

Step by Step Instructions:

Make sure your router has an internet connection before setting up the Wi-Fi Extender Mini

Step 1: Plug the Wi-Fi Extender Mini into a power outlet next to the router
Step 2: When the light on the front is solid yellow, press the pair button on the router and the Wi-Fi Extender Mini for 3-5 seconds. Both devices will blink blue while pairing.
Step 3: Wait until you see a blinking yellow light then unplug the Wi-Fi Extender Mini
Step 4: Move it to an area between the router and the weak Wi-Fi coverage, then plug it in.
Step 5: Once the light turns solid white, your setup is complete.

No. The Wi-Fi Extender Mini is designed to work exclusively with the Verizon Router. The extender pairs with the router through Wired Protected Setup (WPS). Once paired, the Wi-Fi Extender Mini clones (replicates) the Wi-Fi Name/Password from the router with no manual configuration. The Wi-Fi Extender Mini is designed to communicate with the router on a dedicated Wi-Fi 6E backhaul to the Verizon router, providing a high speed Wi-Fi connection with no interference.

You need to reboot the device by removing and reinserting in the power outlet. Within 5 minutes of the reboot, the Wi-Fi Name(s) should be configured on your Wi-Fi Extender Mini. If the Wi-Fi Names are not configured after a reboot, attempt manual pairing with the Verizon Router. Manual pairing requires the Unified Button to be depressed on both devices as described in FAQ #3. Please refer to the sequence of lighting in FAQ #6 for manual pairing.

Algunos hogares o empresas pueden ser demasiado grandes como para que la señal Wi-Fi del enrutador cubra todo el lugar. Además, es posible que haya distintos tipos de interferencia, como paredes, microondas, teléfonos inalámbricos, etc., que debiliten la señal Wi-Fi.

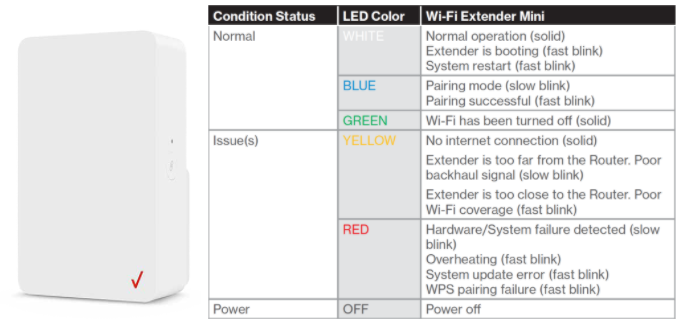

Los extensores Wi-Fi ayudan a ampliar el alcance de la señal Wi-Fi en zonas de tu hogar en las que la señal es débil o nula. To get the most out of your Wi-Fi Extender Mini, place it between your Verizon Router and the weak Wi-Fi area. Mira el cuadro que aparece a continuación para asegurarte de haber colocado el extensor en una ubicación óptima.

Disclaimer: The Wi-Fi Extender Mini is designed to extend your router’s Wi-Fi coverage, not to increase your Wi-Fi speed. Las velocidades Wi-Fi reales varían debido a la red y los factores ambientales, que incluyen el volumen de tráfico de red, materiales de edificación, demandas del dispositivo y gasto adicional de red.

No. The Wi-Fi Extender Mini is a wall pluggable Wi-Fi Extender that only supports a Wi-Fi connection (backhaul) to the Verizon Router.

All Wi-Fi enabled devices that support the 802.11g, 802.11n (Wi-Fi 4), 802.11ac (Wi-Fi 5), and 802.11ax (Wi-Fi 6 & 6E) standards (laptops, tablets, smartphones, gaming consoles, TV’s, etc. ) can be connected to the Wi-Fi Extender Mini.

Yes, the Wi-Fi Extender Mini supports Tri-Band Wi-Fi, or 3 unique Wi-Fi bands. The extender broadcasts on the 2.4, 5 and 6 GHz bands. By default, the 2.4 and 5 GHz bands are enabled and are managed together by Self Organizing Networks (SON) to use the same Wi-Fi name and password; and the 6 GHz band is enabled and broadcasting when connected to a Verizon Router.

No. Based on the Digital Transfer Content Protection guidelines, a wi-fi connected set-top-box connected to a Wi-Fi connected Wi-Fi Extender Mini, can’t be supported. Any wi-fi connected set-top-box would need to be directly connected to the router. For more information on DTCP, please visit https://www.dtcp.com/faq.aspx.

Wi-Fi Extender Mini should be placed between your Verizon Router and the area where your Wi-Fi signal is weak. Please refer to FAQ # 6 for further information on optimal placement of the extender.

Para reducir la debilidad de la señal Wi-Fi, el extensor debería ser colocado preferentemente:

• At least 10 feet from cordless phones or microwaves,

• Away from heat sources, moisture, excessive dust or extreme cold,
• Lejos de objetos metálicos grandes.

Para ampliar la cobertura Wi-Fi a tu patio, coloca el extensor cerca de una ventana.

Note: When plugging in the Wi-Fi Extender Mini, ensure there is proper ventilation to all sides and in front of the extender. Do not plug in the unit behind furniture, curtains, or anything that obstructs its air flow.

If you currently have a previous generation Verizon Wi-Fi Extender, and are currently using or upgrading to the Verizon Router, an upgrade to the new Wi-Fi Extender Mini is required if you choose to connect your extender to the Verizon Router over Wi-Fi (backhaul). If you choose a wired connection to the router, previous generation extenders, like Fios Extender (E3200), support both Coax (MoCA) and Ethernet (backhaul) connections to the router.

Wi-Fi Extender Mini supports WPA2/WPA3 Wi-Fi Security. WPA2 (Wi-Fi Protected Access II) is the default Wi-Fi security

Wi-Fi Extender Mini is a wall pluggable extender, so rebooting simply requires removing it from the power outlet, and plugging it back in.

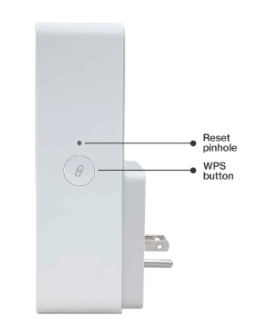

Pressing and holding the reset button located on the side of the Wi-Fi Extender Mini will restore the extender to the factory default settings. Use the pointed end of a paperclip to press and hold the button for 3-5 seconds.

Es posible que algunos aparatos necesiten actualizar sus controladores de Wi-Fi para ser compatibles con los enrutadores que usan Wi-Fi 6 (802.11ax). Además, es posible que algunos aparatos, como los televisores y las PC portátiles, no sean compatibles con la última tecnología Wi-Fi usada por un enrurador avanzado, y quizá sea necesario desactivarlo.

Nota: Los adaptadores Intel Wireless compatibles con 802.11ac con controladores más antiguos podrían no mostrar las redes Wi-Fi 6 (802.11ax). Verifica/actualízate a los últimos controladores Wi-Fi.

Sí, para disfrutar de un rendimiento Wi-Fi óptimo, los controladores Wi-Fi siempre deberían estar actualizados. En varios casos, pero no en todos, los controladores Wi-Fi se actualizan automáticamente mediante la activación de actualizaciones automáticas.

Nota: Los adaptadores Intel Wireless compatibles con 802.11ac con controladores más antiguos podrían no mostrar las redes Wi-Fi 6 (802.11ax). Verifica/actualízate a los últimos controladores Wi-Fi.
